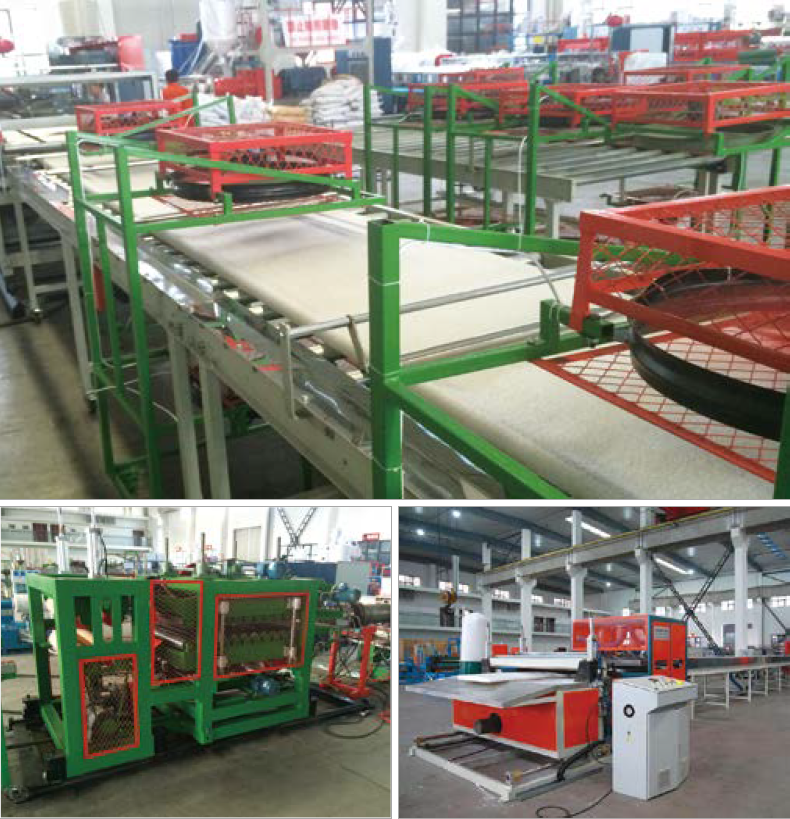

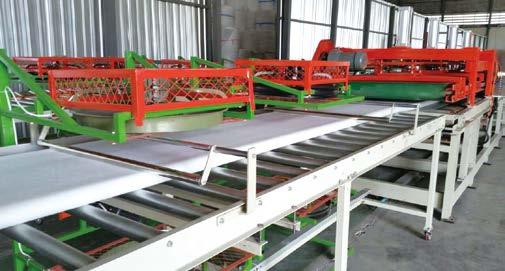

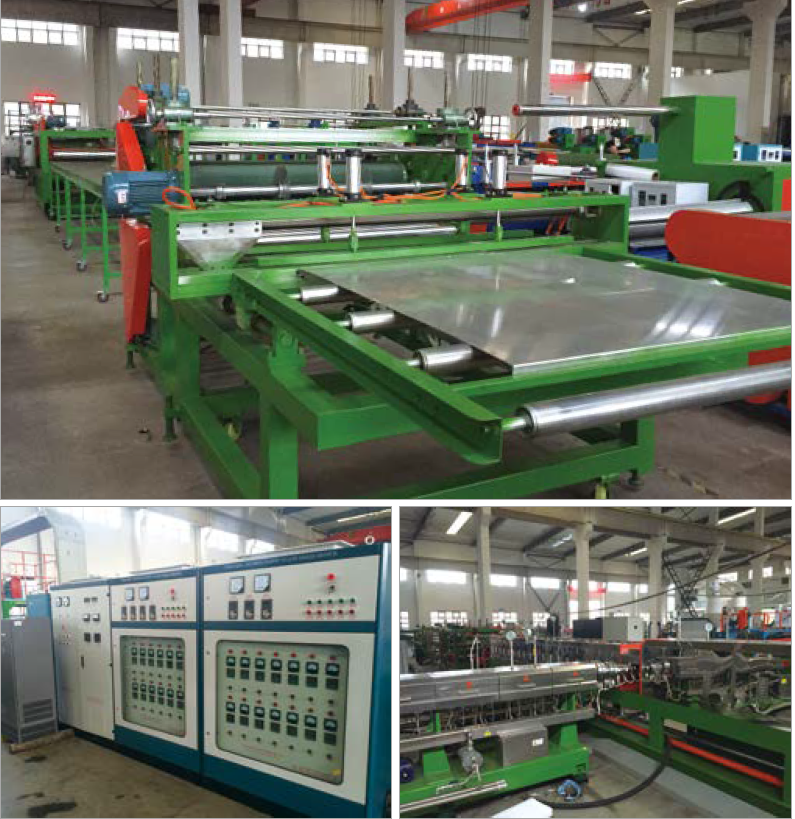

EPE Foam Board Production Line

Equipped with frequency conversion soft start-up device, and it will save 30% electricity; applied PLC and solid-state no spark heating control technology for temperature contro…

Interested in this equipment?
+86 138 1882 5869
Get a Quote
info@jcfoam.com
Product Details

Product Description

Equipped with frequency conversion soft start-up device, and it will save 30% electricity; applied PLC and solid-state no spark heating control technology for temperature control, safe and stable; adopted 12HP dual-system, dual-cold and high pressure cold planish machine in cooling control system; applied oil heating and cooling design to the screw to decrease scale, extend devices service time, save water, and no longer use recycling water; with dual-vacuum online pinhole mounting hole endothermic and special design for board cutting control system, it integrated producing and edge trimming in one, convenient for operating, controlling and reducing the space.

Technical Data

Main Technical Specification

Model JC-FPB75P2/200 JC-FPB135/180 JC-FPB150/200 JC-FPB180/250 JC-FPB200/300 JC-FPB90P2/300
Screw dia. mm 75P2/200 135/180 150/200 180/250 200/300 90P2/300
Foaming rate times 15-45 15-45 15-45 15-45 20-45 15-45
Product width mm 500-900 400-900 500-1000 ( flat-die) 600-1100 ( flat-die) 600-1200 ( flat-die) 500-1200
2200 (round-die) 2200 (round-die) 2200 (round-die)
Product thickness mm 40-80 35-45 25-50 40-80 50-100 50-100
Product density kg/m3 20-80 20-40 20-50 20-80 28-120 28-120
Output kg/h 350-450 300-350 400-650 550-850 650-900 650-900
Installed power KW 280 260 280 350 450 450
Actual power KW 180 180 200 260 300 280
Dimensions m 100×4×2.4 100×4×2.4 100×4×2.4 100×4×2.4 100×4×2.4 100×4×2.4

Note: The above-mentioned data is only for your reference and we keep the rights for modification of the component and machinery structure. The relevant contents involved in equipment purchase should be subject to the contract.
